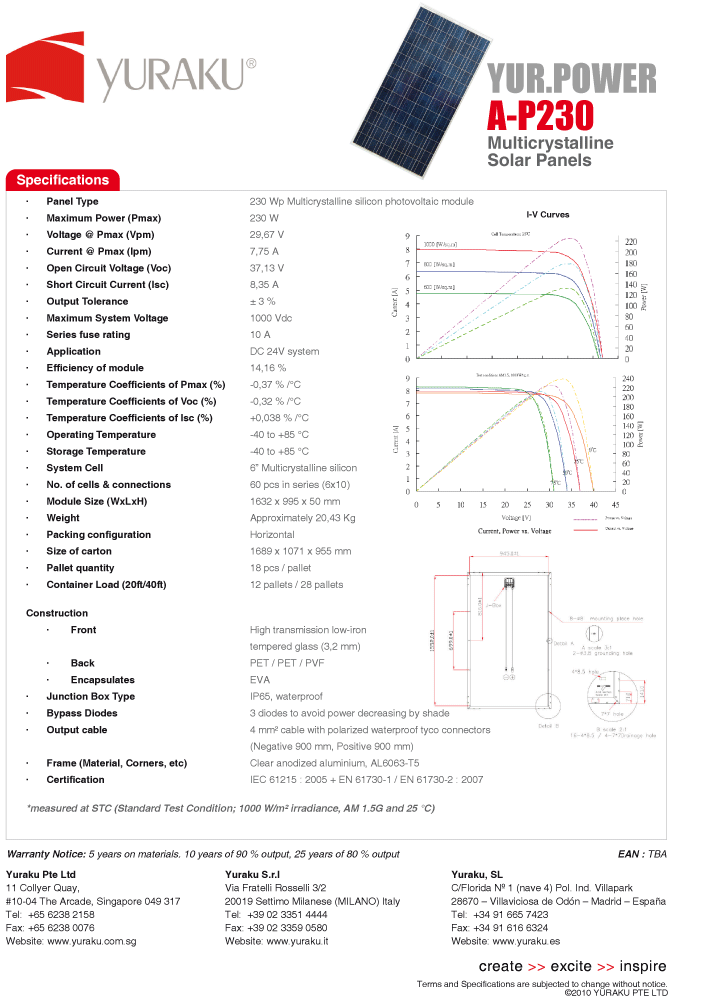

Photovoltaic panel YUR. POWER A-P 230
The module A-P 230, certified IEC 61215 e EN 61730-1/61730-2 by TUV Intercert (Germany), is made of 60 cells and measures 1632mm x 995 mm.The frame in anodized aluminium and the efficient photovoltaic cells offers a guaranteed production of 80% at the 25th year. The NOCT value of 44,8°C and the temperature coefficient Pmax (%) a -0,37% /°C allows the module to work perfectly in all climate conditions.
Technical information:
- Maximum Power (Pmax) 230W
- Voltage @ Pmax (Vpm) 30,15V
- Current @ Pmax (Ipm) 7,63A
- Open Circuit Voltage (Voc) 37,36V
- Short Circuit Current (Isc) 8,15A
- Output Tolerance ± 3%
- Maximum System Voltage 1000 Vdc
- Series fuse rating 10A
- Application 24V CC
- Efficiency of module 14,16%
- Temperature Coefficients of Pmax (%) -0,37% /°C
- Temperature Coefficients of Voc (%) -0,32% /°C
- Temperature Coefficients of Isc (%) +0,038% /°C
- NOCT 44,8°C
- Operating/Storage Temperature-40 to +85°C
- Tipo celle Silicio Multicristallino 6"
- No. of cells & connections 60 (6x10)
- Module Size (WxLxH) 1632 x 995 x 50mm
- Weight 20,2Kg
- Packaging Horizontal
- Packaging size 1689 x 1071 x 955mm
- Pallet quantity 18pcs / pallet
- N. pallet per container(20ft/40ft) 12pallet / 28pallet
Costruzione:
- Front high transmission low-iron glass (3.2mm)
- Back in PET / PET / EVA
- Encapsulates EVA
- Bypass Diodes Nr. 3
- Junction Box Type IP65, waterproof
- Frame (Material, Corners, etc) Clear anodized aluminium, AL6063-T5
- Output cable 4 mm2 cable with polarized waterproof tyco connectors (Negative 900mm, Positive 900mm)
- Certification IEC 61215 : 2005 + EN 61730-1 / EN 61730-2 : 2007
Values measured at STC (Standard Test Condition; 1000 W/m2 irradiance, AM 1.5G and 25 °C)
Terms and Specifications are subjected to change without notice.
